Paired Devices ​

Purpose: Connect Android companion devices to OwnPay using secure, temporary pairing codes to forward incoming transaction SMS alerts.

Overview ​

The Paired Devices page manages connection states between the OwnPay administrative server and your physical mobile devices running the OwnPay Android Companion App. Pairing mobile devices enables automatic forwarding of wallet transfer SMS (e.g. bKash, Nagad, Rocket) to your server for real-time regex parsing and transaction approval.

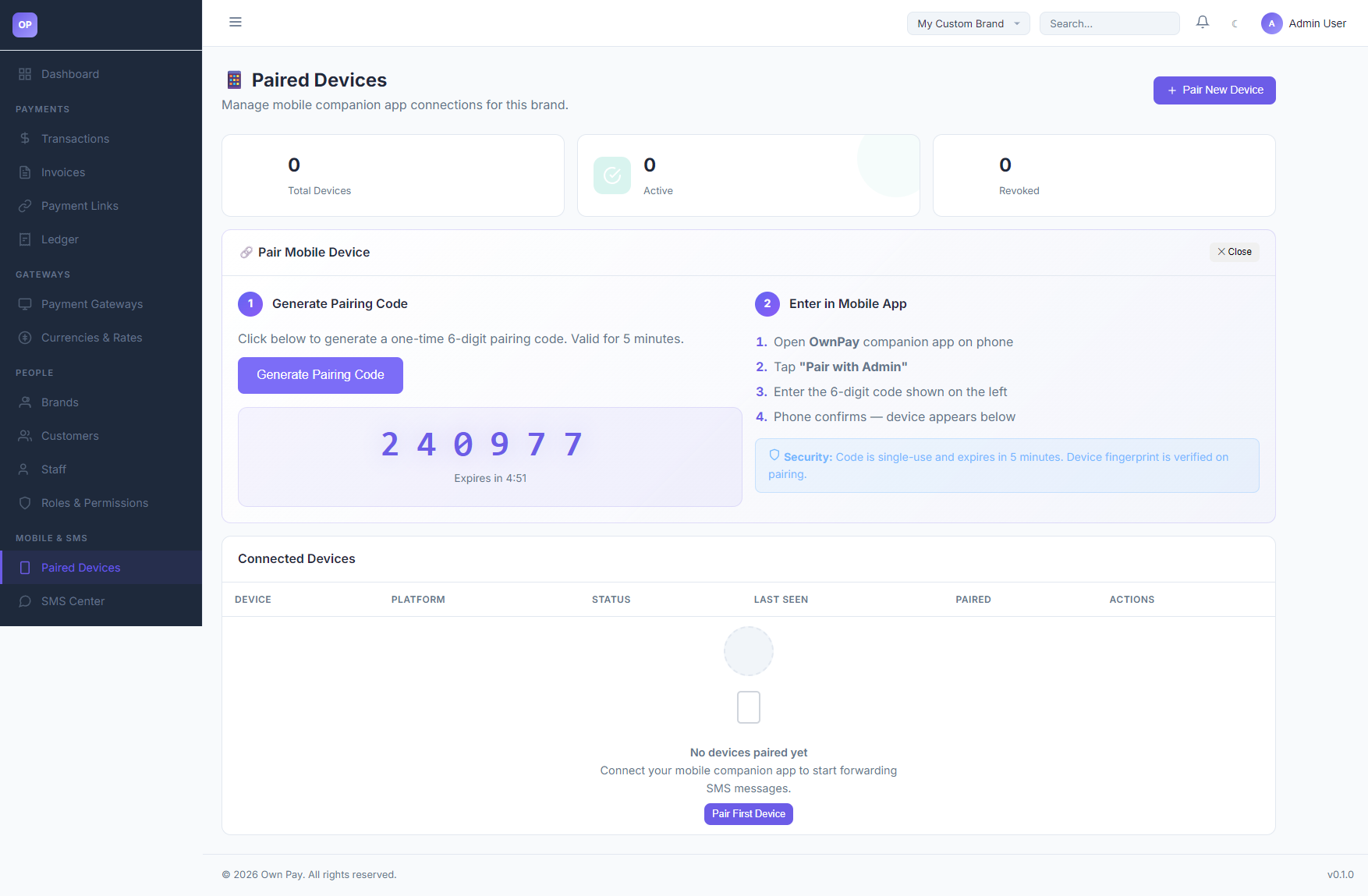

Paired Devices Overview

Getting Here ​

To access the Paired Devices manager:

  1. Log in to the OwnPay admin dashboard.
  2. Under the MOBILE & SMS section in the left sidebar, click Paired Devices.

Page Sections ​

The Paired Devices dashboard is divided into three areas:

1. Connection KPI Cards ​

Located at the top of the content view, showing status aggregates:

  • Total Devices: Lifetime count of mobile profiles paired with this brand context.
  • Active: Devices currently authorized and listening for incoming SMS.
  • Revoked: Devices that had their session keys manually invalidated by an administrator.

2. Pair Mobile Device Wizard ​

The interactive connection guide:

  • Pair New Device Button: Displays or hides the wizard panel.
  • Generate Pairing Code: Generates a temporary 6-digit numeric token (e.g., 240977) valid for 5 minutes.
  • Expiration Countdown: Displays remaining time before the token invalidates.
  • App Pairing Instructions: Walkthrough outlining how to insert the code inside the Android companion application.

3. Connected Devices Table ​

Displays all authenticated hardware:

  • DEVICE: Device name and verified hardware fingerprint.
  • PLATFORM: OS version (e.g., Android 13, SDK 33).
  • STATUS: Active, Offline, or Revoked.
  • LAST SEEN: The timestamp of the last heart-beat ping sent from the device.
  • PAIRED: Date and time the pairing was authorized.
  • ACTIONS: Click Revoke to permanently disable forwarding credentials for the device.

Fields & Options Reference ​

Pairing Options Reference ​

Control OptionTypeExpiryDescription
Pair New DeviceButton—Toggle visibility of the device pairing panel.
Generate Pairing CodeButton—Generates a 6-digit OTP code to insert into the mobile app.
6-Digit OTPOutput Code5 MinutesThe security token to type into the companion app.
RevokeButtonImmediateInvalidates the device's JWT token, blocking all future API calls.

Step-by-Step: How to Use This Page ​

Pairing a New Android Device ​

  1. Navigate to the Paired Devices page and click Pair New Device.
  2. Click Generate Pairing Code. Note the 6-digit code (e.g., 240977) and the countdown.
  3. Open the OwnPay Companion App on your Android device (ensure it has SMS permission enabled).
  4. Tap Pair with Admin in the app.
  5. Enter the 6-digit code displayed in the admin panel and tap Confirm.
  6. The admin panel table will refresh, and your device will appear under Connected Devices with an active status.

Revoking a Lost or Unused Device ​

  1. Locate the device profile in the Connected Devices table.
  2. Click the Revoke button under the ACTIONS column.
  3. Confirm the prompt. The device status will switch to revoked, and its authentication keys will be deleted.

Configuration Guide ​

  • Device Pairing Security Constraints:
    • Pairing generates a cryptographically secure token that is mapped to the super-administrator or active user context.
    • If a device is compromised, clicking Revoke performs a server-side invalidation of the JWT token.
    • In case of pairing issues (e.g., fallback matching), DevicePairingService queries the owner column and falls back to user ID 1 to prevent system crashes.

Best Practices ​

  • ✅ Do: Give your devices recognizable names (e.g., "bKash Phone 1") to easily distinguish them during audits.
  • ✅ Do: Periodically check the LAST SEEN column to verify that your forwarder phones are actively online.
  • ❌ Don't: Share pairing codes with third parties or display them in public channels.
  • ❌ Don't: Keep revoked device profiles active if they are no longer in service.

Must Do ​

⚠️ Ensure the Android companion app is excluded from battery optimization settings on the phone. Otherwise, the OS may pause the background service, leading to SMS forwarding delays.
